Writing Silverlight people picker control using SharePoint 2010 Client object model


Whenever you are developing a silverlight solution on SharePoint 2010, one of the basic functionality you will require is the ability to select people from your Active Directory.

Sadly, I could not find a ready made custom silverlight control which I could utilize for my solution. I decided to write on my own. Rather than writing from scratch, I decided to use the boilerplate code provided by Steve.

In this post, I am going to deep dive how I built this control.

My solution consists of two controls, PeopleChooser and PeoplePicker. PeopleChooser is a user control which is configured to either single select or multi select depending upon the configuration. Here’s a screenshot of my people Chooser control, implemented as a user control in Silverlight.

PeopleChooser Single Selection

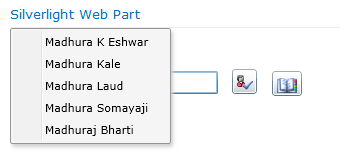

In case of multiple results, user can right click on the textbox to display multiple results and select one of them.

PeopleChooser Multiple results

The multi select configuraiton is rendered as a listbox instead of a textbox. I made a conscious design decision to do this so that user instantly comes to know that this is a multi select picker by directly looking at it.

PeopleChooser Multiple selection

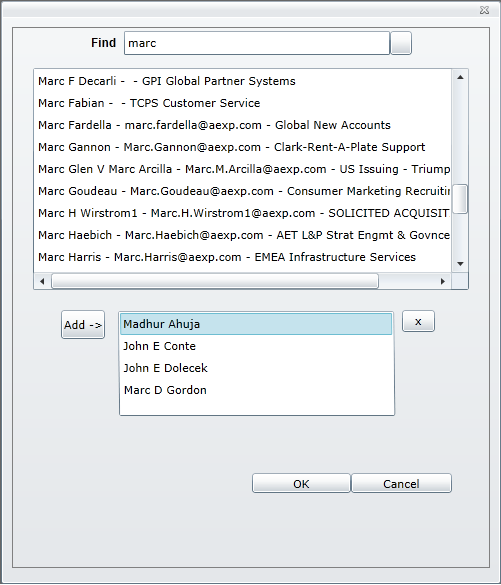

PeoplePicker is a ChildWindow which is launched from the PeopleChooser to search and enumerate people from the active directory. Clicking on the address book button opens the people picker, where the user can select either multiple people or single people depending upon the configuration of the control. This is the screenshot of people picker control.

PeoplePicker

Feel free to download this control or customize by downloding the source from my github repo

Anyone, who wants to reuse or customize this control further, I will explain in brief how this works.

Both PeopleChooser and PeoplePicker have a listbox which employ two-way data binding. Both listbox are bound to a following data structure SelectedAccounts which is an ObservableCollection of type AccountList

public class SelectedAccounts : ObservableCollection<AccountList>
{
    public SelectedAccounts(): base()
    {
    }
}

public class AccountList : INotifyPropertyChanged
{
    private string _accountName;
    private string _displayName;
}

The below XAML shows the two way databinding with this data structure

 <ListBox x:Name="UsersListBox" DataContext="selectedAccounts" ItemsSource="{Binding SelectedAccounts, Mode=TwoWay}" HorizontalAlignment="Left" Height="100" Margin="26,43,0,0" VerticalAlignment="Top" Width="182">
    <ListBox.RenderTransform>
        <CompositeTransform SkewX="0.661" TranslateX="0.606"/>
    </ListBox.RenderTransform>
    <ListBox.ItemTemplate>
        <DataTemplate>
            <StackPanel Orientation="Horizontal">
                <TextBlock Text="{Binding DisplayName}"/>
            </StackPanel>
        </DataTemplate>
    </ListBox.ItemTemplate>
</ListBox>

SelectedAccounts data structure is populated using People WebService.

PeopleSoapClient ps = new PeopleSoapClient();
ps.Endpoint.Address =
new System.ServiceModel.EndpointAddress(siteUrl + peopleWsUrl);

ps.SearchPrincipalsCompleted += new EventHandler<SearchPrincipalsCompletedEventArgs>(ps_SearchPrincipalsCompleted);

ps.SearchPrincipalsAsync(SearchTxt.Text, 50, SPPrincipalType.User);

Depending upon if multiple selection is allowed or not, ListBox is hidden and TextBox is shown instead along with a resolve button.

public bool AllowMultiple { get; set; }

void PeopleChooser_Loaded(object sender, RoutedEventArgs e)
{
	if (AllowMultiple)
	{
		UsersListBox.Visibility = System.Windows.Visibility.Visible;
		UserTextBox.Visibility = System.Windows.Visibility.Collapsed;
		ResolveButton.Visibility = Visibility.Collapsed;
	}
	else
	{
		UsersListBox.Visibility = System.Windows.Visibility.Collapsed;
		UserTextBox.Visibility = System.Windows.Visibility.Visible;
		ResolveButton.Visibility = Visibility.Visible;
	}

	peoplePicker.AllowMultiple = AllowMultiple;

}

If there are muliple results, right mouse button on TextBox is handled and displays choices to user to enable him to select a single result.

private void UserTextBox_MouseRightButtonUp(object sender, MouseButtonEventArgs e)
{
    // Display a menu on mouse right button up
    cMenu = new ContextMenu();

    foreach (PickerEntry pi in values.Values)
    {
        mnuItem = new MenuItem();
        mnuItem.Header = pi.DisplayName;
        mnuItem.Name = pi.AccountName;
        mnuItem.Click += mnuItem_Click;
        cMenu.Items.Add(mnuItem);

	}

    cMenu.IsOpen = true;
}

void mnuItem_Click(object sender, RoutedEventArgs e)
{
    MenuItem mnu = sender as MenuItem;

    values = new Dictionary<string, PickerEntry>();
    values.Add(mnu.Name, new PickerEntry(mnu.Header.ToString(), mnu.Name, string.Empty, string.Empty));

    SetSingleResult(values);
}
